BTYMQ-BX403 Portable Multi-Gas Detector

The BTYMQ-BX403 Portable Multi-Gas Detector is a high-performance, intelligent gas
monitoring device designed for industrial safety applications. It integrates advanced
microcontroller technology with a built-in pump sampling system, enabling fast and
accurate detection of up to 4 gases simultaneously, with common configurations including
CH₄, H₂S, CO, and O₂.

With a 4000mAh rechargeable battery providing ≥8 hours of continuous operation, IP66
protection rating, and explosion-proof design, the BTYMQ-BX403 is ideal for use in
petrochemical, mining, metallurgy, environmental monitoring, firefighting, and confined

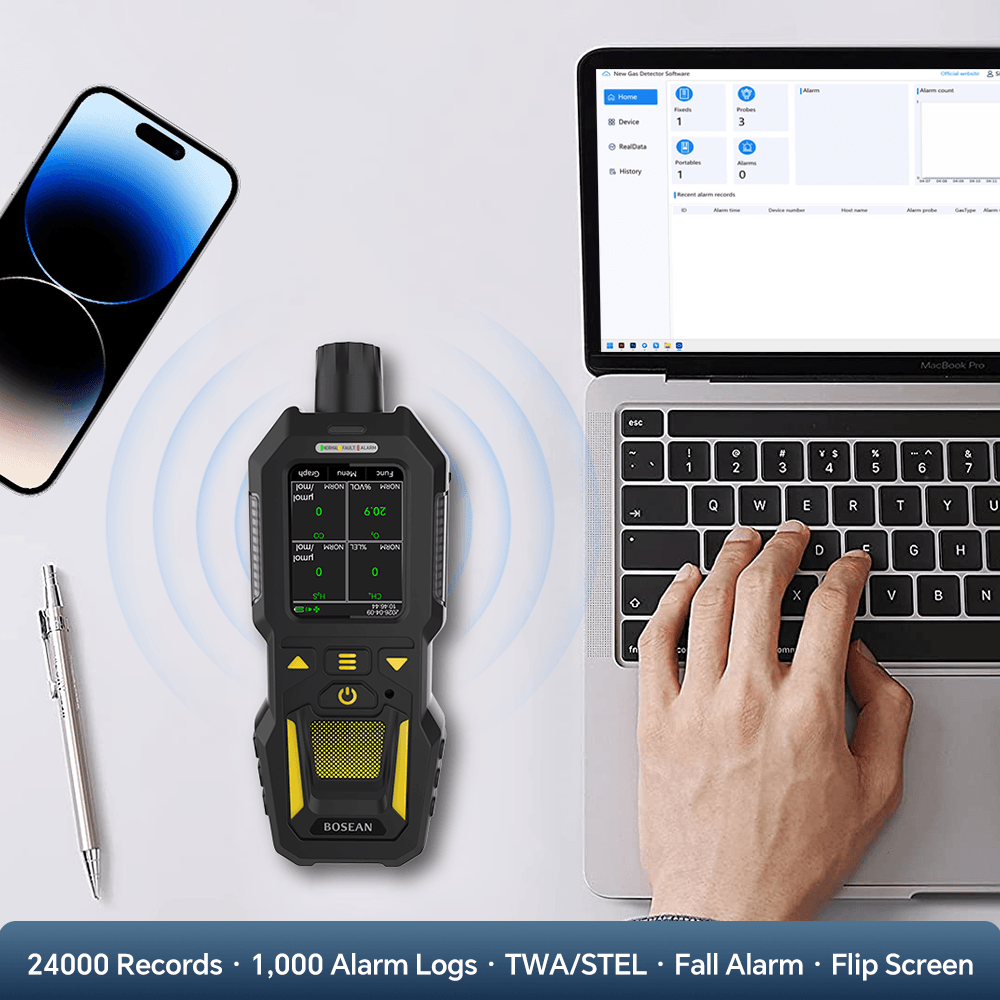

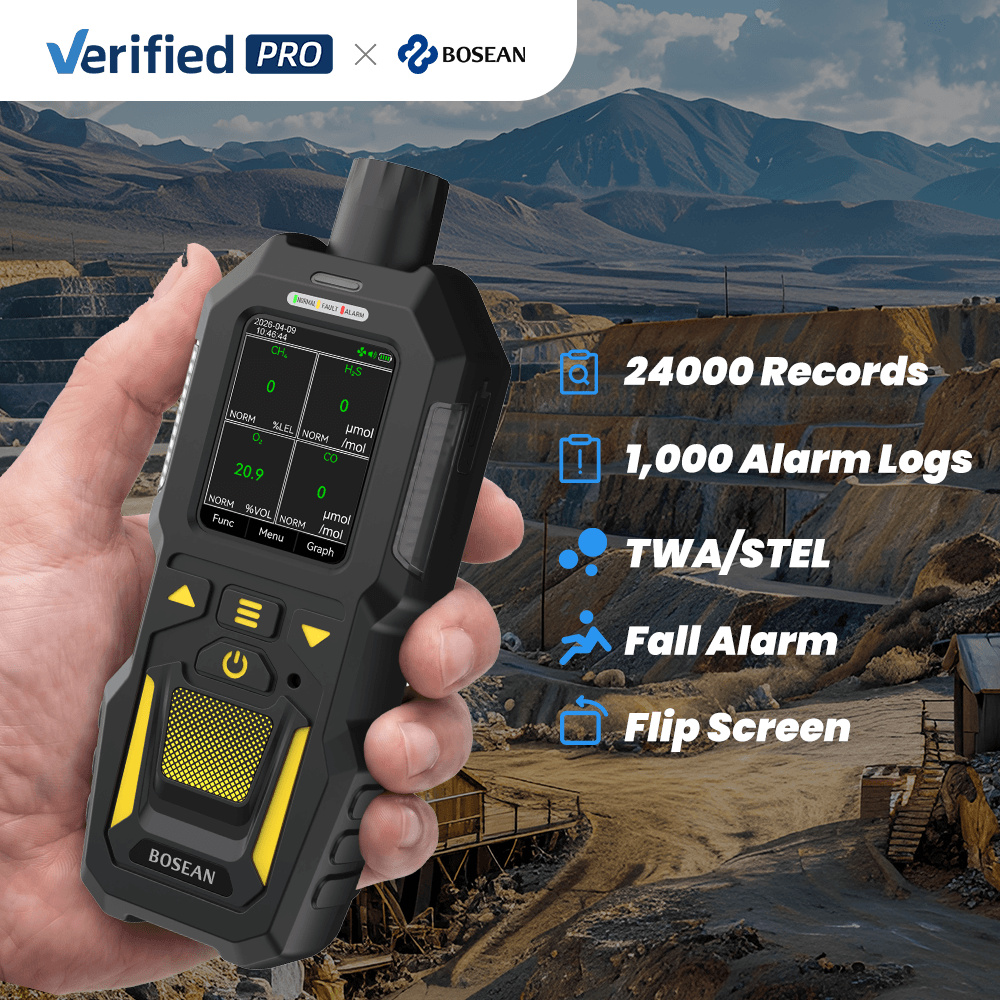

space applications. It also features fall alarm, GPS positioning, NFC binding, and data
logging for up to 24,000 records, making it a comprehensive solution for modern industrial
gas detection needs.

Feature

The shell is made of high -strength engineering plastics and composite non-slip rubber. High intensity, good feel, waterproof, dustproof, explosion -proof. This detector is widely used in oil, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.

Specifications

Sampling method
natural diffusion
Accuracy
≤ 5% F.S.
Response time
T<30s

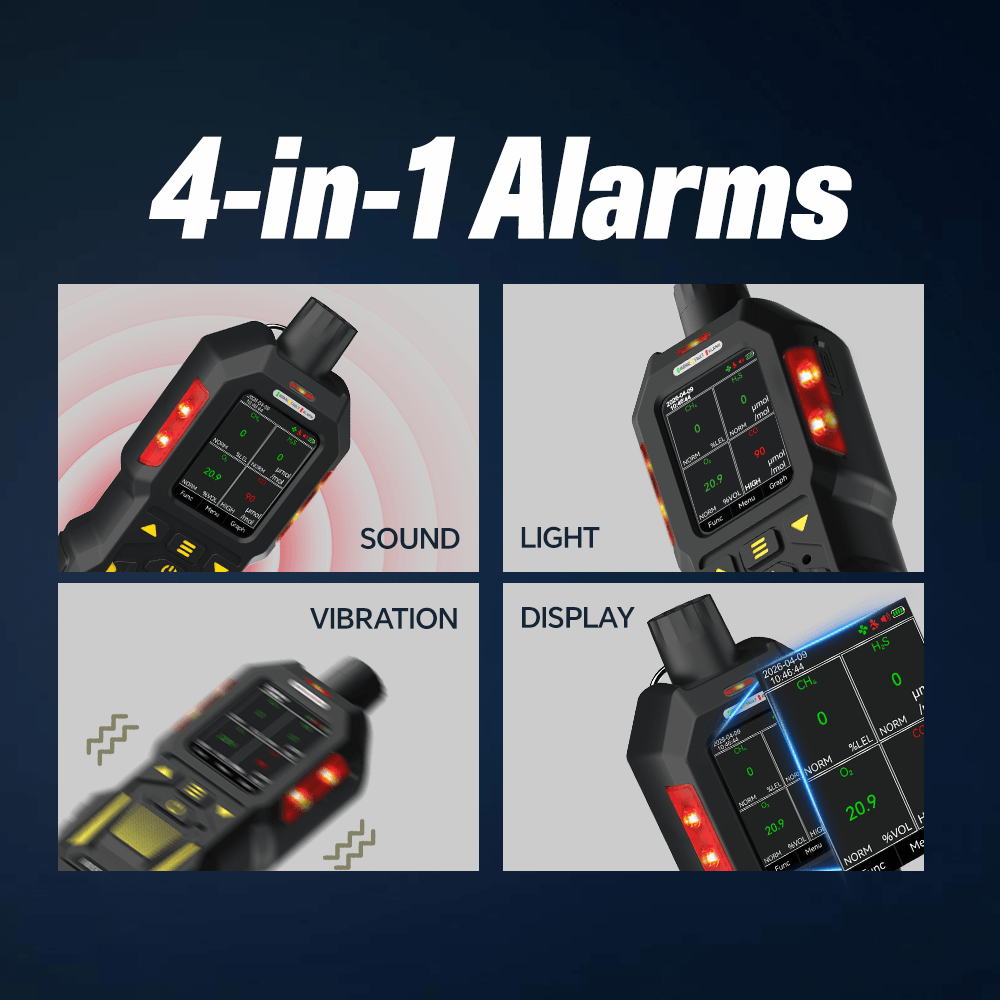

Alarm Method
four alarm method (sound, vibration, light, display)
Operating Environment
Temperature: -10℃~55℃
Humidity: <95%RH non-condensing
Operating voltage
DC 3.7V Li battery 1500mAh
Working time
≥ 8h continuously
Charging time
4h~6h
Sensor life
2 years
Explosion proof
Ex ib II C T4 Gb
Protection category
IP66
Weight
about 130g (including battery but without accessories)
Dimension
109mm × 60mm × 30mm
