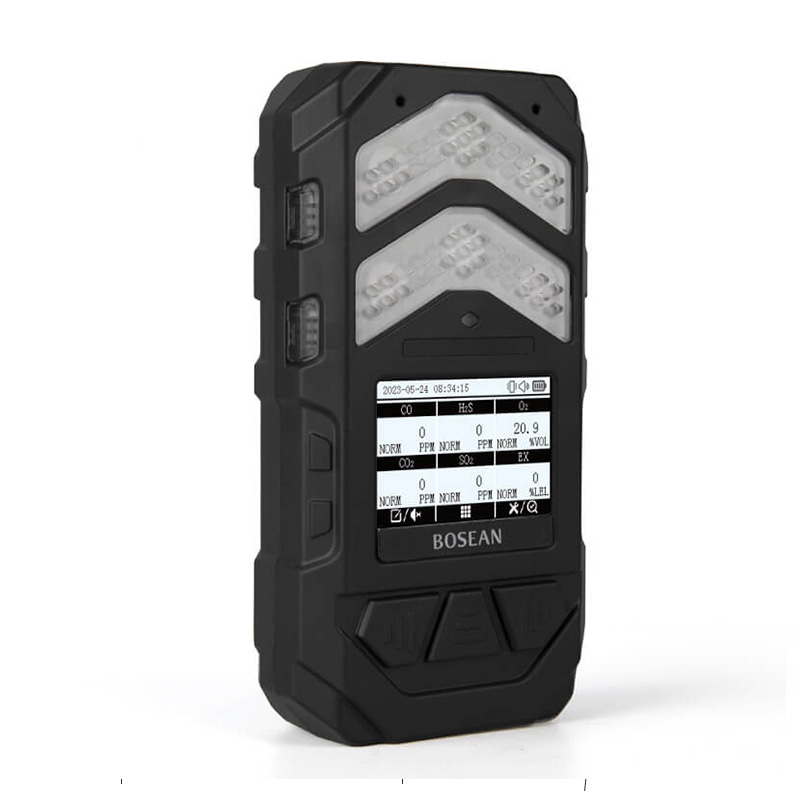

K-600N 6 in 1 Multi Gas Detector

K-600N diffusion multi-gas detector is a new intelligent gas detector, which adopts an advanced integrated circuit, with standard intelligent level design technology, and proprietary digital analog hybrid communication technology. The detector is of excellent sensitivity and repeatability, which makes it very easy to use and maintain. Thus greatly meets the safety requirements of industrial sites with high reliability. The detector is made of high-strength engineering plastics, compound nonslip rubber, which is of high strength and good hand feeling. what’s more, the detector is water-proof, dust-proof and explosion-proof.

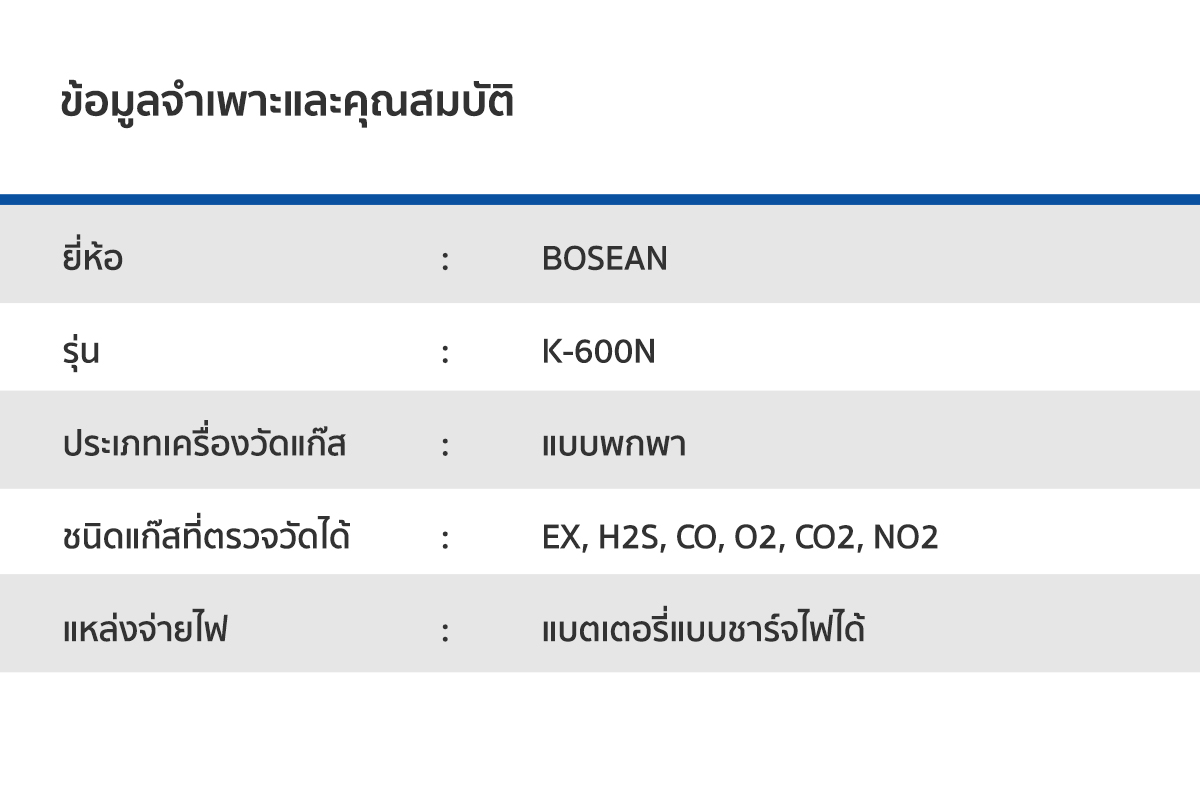

Bosean K-600N เครื่องตรวจจับแก๊สรั่ว เครื่องวัดแก๊ส ตรวจจับแก๊ส EX, H2S, CO, O2 เครื่องวัดก๊าซ เครื่องตรวจแก๊ส เครื่องวัดแก๊ส LPG เครื่องวัดแก๊สแอมโมเนีย เครื่องตรวจวัดแก๊ส เครื่องตรวจจับก๊าซ เครื่องตรวจแก๊สรั่ว Gas Detector

Feature

  • Humanized GUI operation interface, using dot matrix screen display.
  • Three-button operation mode, easy and intuitive to operate.
  • Sound, light, vibration and display four alarm methods.
  • Support gas unit switching function.
  • Support multi-point calibration, up to 5-point calibration.
  • Support connecting to the computer software to read data. The USB interface adopts the Type-C interface.
  • Simultaneously detecting 6 gases. 240×160 high-resolution screen display.

Specifications

Gas sampling method
Natural diffusion
Display method
Dot matrix screen, resolution 240x160 px
Accuracy
≦±5% F.S.
Response Time
T90<30s (Depending on the gas sensor)
Indication
- LCD displays real-time and system status;
- LED, audio and vibration alert for gas leakage, fault and low voltage.
Working environment
- Working temperature: -10℃~55℃
- Working humidity: 15%RH ~95%RH (no dew)
Power Source
DC3.7V Li-on battery, 1800mAh
Charging time
6h~8h
Working time
≧8h continuously (without alarming)
Gas Sensor Life
2 years
Explosion-proof grade
Ex ia IIC T4 Ga
Protection Grade
IP66
Alarm method
Sound, light, vibration and display four alarms
Dimensions
165mm×90mm×50mm (L × W × H)
