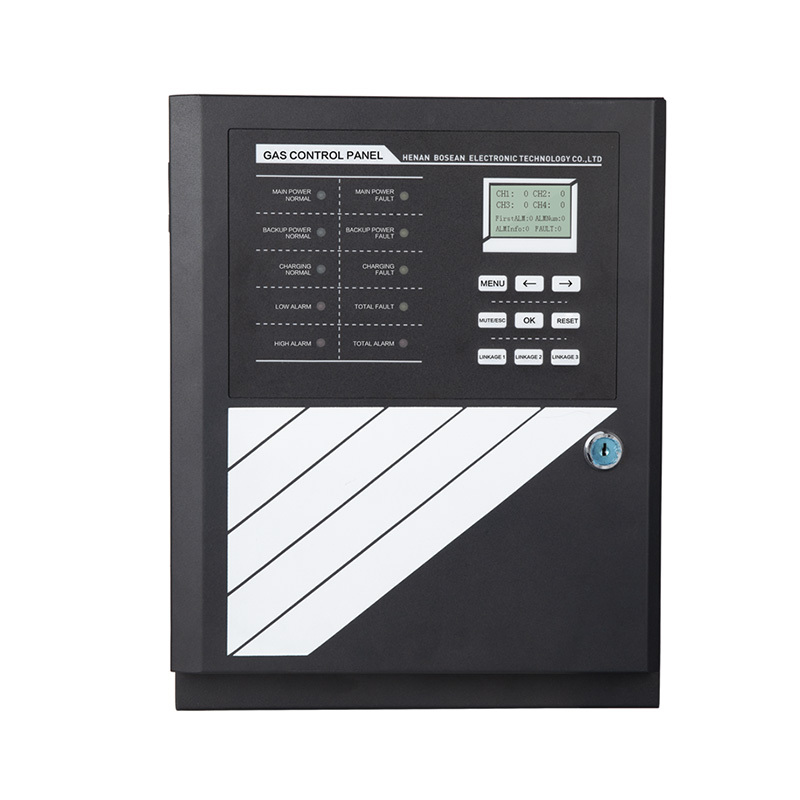

S-8000 Gas Controller

S-8000 Gas Monitor System is a RS485 signal controllersystem. It is used for detecting gas concentration in the air. The system could connect to detectors for different gases in the same time.

The system adopts MCU as control unit, withlarge LCD touch screen,excellent gas sensor with highsensitivity and fast response.

It will give visual and audiblealarm when the gas concentration reach or exceed thepresetting alarm level to remind you to take effective actionsin time and it could also start the ventilation fan and otherequipment to prevent from accident and explosions.

Feature

  • Two level sound and light alarm
  • Multi level permissions ensure data security
  • Equipped with backup power
  • Fault self check
  • Rich external control ports
  • Alarm Record Query

Specifications

Display
LCD screen and LED light
Panel consumption
≤80W

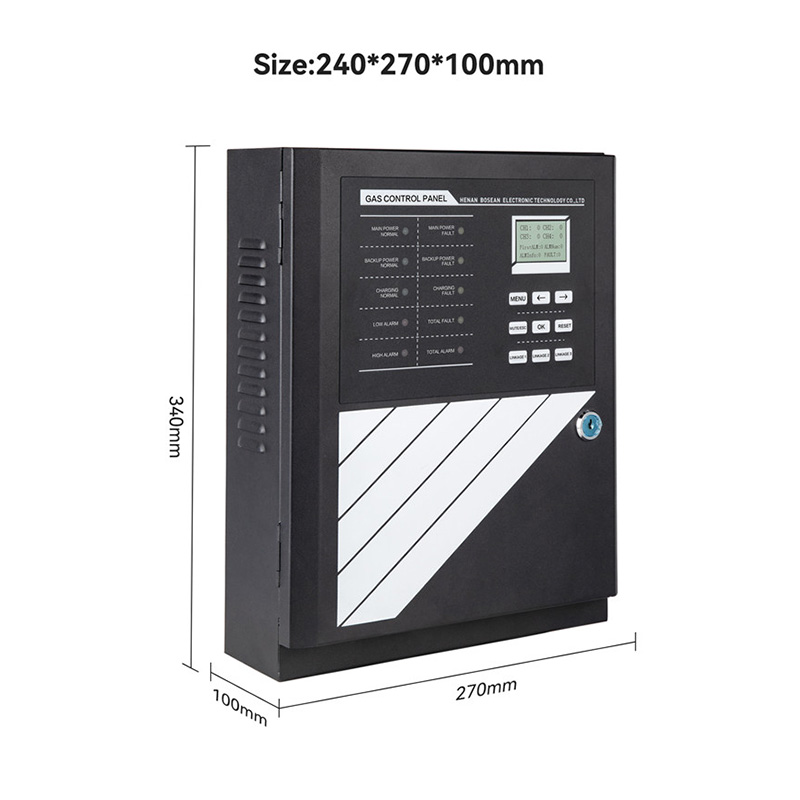

Product size
34×27×10cm (about 7kg)
Working humidity
≤95% (no dew)
Operation temperature
0~40℃
Detector power supply
DC24V±6V
Voltage
AC220V 50/60Hz
Contact output
Three passive contact (consumption: 10A/250VAC or 10A/30VDC)
Input
RS485 digital signal
Digital upload protocol
Two RS485, support MODBUS, O'reina
